TP-DCDC-2456G-VHP
In Stock
$226.66
Tax included

TP-DCDC-2456G-VHP

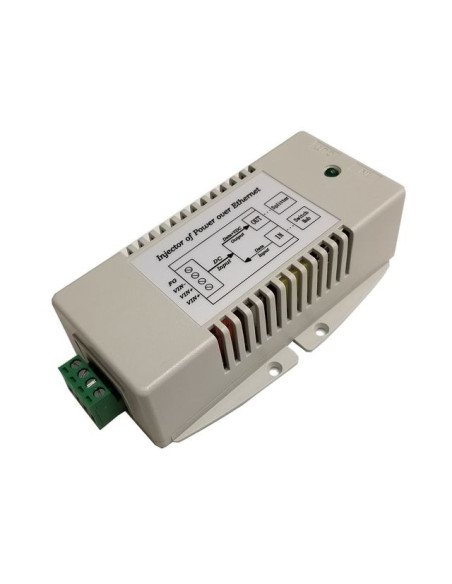

The Gigabit compatible TP-DCDC-2456G-VHP is a special very high power DC to DC converter / PoE inserter designed especially for Ubiquiti airFiber™ antenna systems and other systems which require high power passive PoE such as Axis High Power PoE PTZ security cameras. The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires.
It has two isolated inputs for connecting 2 power sources, like a primary and backup power source. It has various protections for surge, short circuit and overload. The input and output are isolated.





TP-DCDC-2456G-VHP Hi Power DC to DC Converter and passive POE inserter

Features

• Input Voltage 24VDC (18-36VDC) or 48VDC (36-72VDC)
• 8 wire 56VDC Passive PoE Output
• High Power Output to 70W
• Dual DC Inputs for Connecting 2 Power Sources
• Gigabit Data Thruput
• Low self consumption power (<2W)
• Short Circuit, Over Current and Reverse/Over Voltage Protection
• Industrial Temperature Range


Applications

• 24VDC Remote Power Systems
• 48VDC or -48VDC Remote Power Systems
• Ubiquiti airFiber™ Antennas
• High PoE Compatible Security Cameras

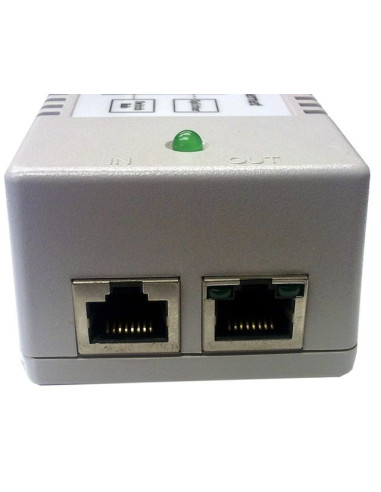

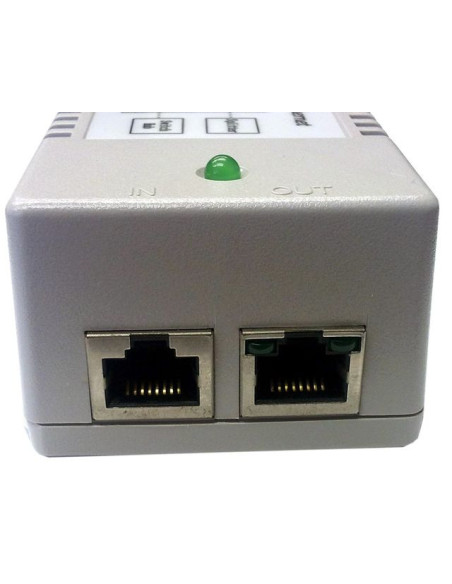

Device Pinouts

RJ-45 Input (Data Only) RJ-45 Output (Data & Power)
Pin Symbol Description Symbol Description
1 BI_DA+ Data Pair A+ BI_DA+, Vo+ Data Pair A+ ,Ch1 POE+
2 BI_DA- Data Pair A- BI_DA-, Vo+ Data Pair A-, Ch1 POE+
3 BI_DB+ Data Pair B+ BI_DB+, Vo- Data Pair B+, Ch1 POE-
4 BI_DC+ Data Pair C+ BI_DC+, Vo+ Data Pair C+, Ch2 POE+
5 BI_DC- Data Pair C- BI_DC-, Vo+ Data Pair C-, Ch2 POE+
6 BI_DB- Data Pair B- BI_DB-, Vo- Data Pair B-, Ch1 POE-
7 BI_DD+ Data Pair D+ BI_DD+, Vo- Data Pair D+, Ch2 POE-
8 BI_DD- Data Pair D- BI_DD-, Vo- Data Pair D-, Ch2 POE-

TP-DCDC-2456G-VHP
Input Voltage +/- 18VDC to 36VDC
DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
POE Specification Passive ( 8 Wire , 4 Pair ) 1245 V+, 3678 V
Output Voltage (+/-2.5%) 56VDC
Data in & Data/POE Output Connector RJ45 (Shielded)
Output Current (max) 1.25A Total
Output Power (max) 70W Total Note: Output power up to 70W at 40C. Derate by 1W for every 1 Deg C above 40C ambient. Example: 60W at 50C
Self-Consumption Power 2W
Efficiency (min) 0.8
Line Regulation, Ripple, Noise 0.01
Load Regulation 0.05
EMC Standards FCC Class B EN55022 Class B
Safety Standards CSA 22.2 &TUV EN60950
Operating Temperature -40 to +70°C (-40 to +158°F)
Operating Humidity (RH) 5% - 90%
MTBF (Mean Time Between Failures) 55,489 Hours
Storage Temperature -40 to +80°C (-40 to +176°F)
Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
Weight 255g (9oz)
