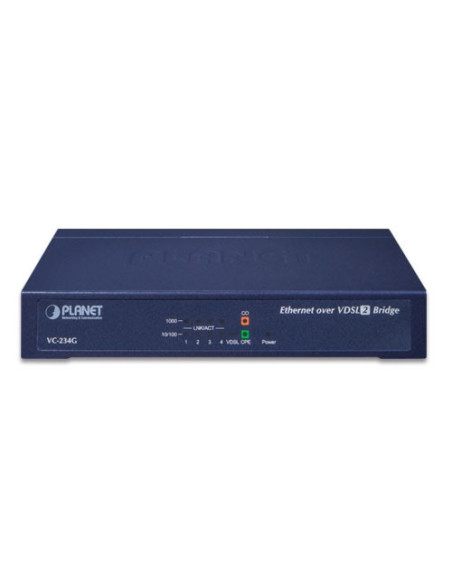

Planet VC-234G 4-Port 10/100/1000T Ethernet to VDSL2 Bridge.

VC-234G
Last items in stock
$234.36
Tax included

VC-234G

PLANET VC-234G, a new-generation and high-performance Gigabit Ethernet-over-VDSL2 Converter, works well with a pervasive telephone line network with a symmetric (downstream/upstream) data rate of up to 150/150Mbps (G.INP, Sym, 8dB) over a distance of 300m and 20/12Mbps over a long distance of 1.4km. It is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely the fastest data transmission speed over the existing copper telephone lines without the need of rewiring.
With integrated support for the ITU-T’s new G.993.5 vectoring technology, the VC-234G works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper telephone infrastructure.

Related Products & Accessories



VC-234G - PLANET 4-Port 10/100/1000T Gigabit Ethernet to 2-Port RJ11 VDSL2 Bridge

Technical Specifications:

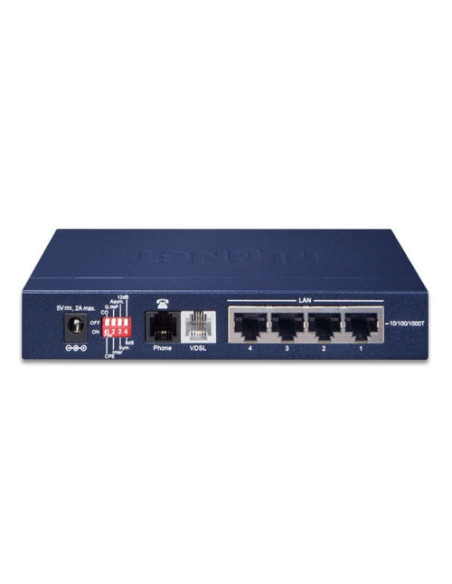

  • LAN Ports: 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
  • VDSL Port: 1 VDSL2 RJ11 female phone jack, twisted-pair telephone wires (AWG24 or better) up to 1.4km
  • Phone Port: 1 RJ11, built-in splitters for POTS connection
  • Dimensions: 154.6 x 86.0 x 26.3mm
  • Weight: 350g
  • Power: 5V DC, 2A external power
  • LEDs: 1 power, 4 1000BASE-T LNK/ACT, 4 100BASE-TX LNK/ACK, 1 VDSL, 1 CO, 1 CPE
  • Housing: Metal

Device Type
Media Converter
Device Features
TAA Compliant
Connector
RJ45
VDSL2
Ethernet Ports
4
Max. Distance
300m
Max. Speed
D 190 / U 190 Mbps (G.INP, Sym, 8dB)
VDSL Profile
17a, 30a
VDSL Standard
ITU-T G.993.2 VDSL2, ITU-T G.993.5 G.vectoring
4711605282833
VC-234G
