PLANET GS-5220-24P4XVR L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch with LCD touch screen

GS-5220-24P4XVR 24-Port PoE SFP+ Managed Switch

GS-5220-24P4XVR
Last items in stock
A$857.99
Tax included

PLANET GS-5220-24P4XVR L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch with LCD touch screen

Amazing PoE+ Managed Switches with Advanced L2+/L4 Switching and Security

PLANET GS-5220-24P4XVR are cost-optimized, 1.25U, Gigabit PoE+ Managed Switches with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of critical business applications. They provide IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with 24 10/100/1000BASE-T ports featuring 36-watt PoE+ and 4 additional 10Gigabit SFP+ ports.

PLANET GS-5220-24P4XVR L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Switch with LCD touch screen

Amazing PoE+ Managed Switches with Advanced L2+/L4 Switching and Security

PLANET GS-5220-24P4XVR are cost-optimized, 1.25U, Gigabit PoE+ Managed Switches with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of critical business applications. They provide IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with 24 10/100/1000BASE-T ports featuring 36-watt PoE+ and 4 additional 10Gigabit SFP+ ports. With a total power budget of up to 400 watts for different kinds of PoE applications, the GS-5220-24P4XVR provide a quick, safe and cost-effective PoE+ network solution for small businesses and enterprises.

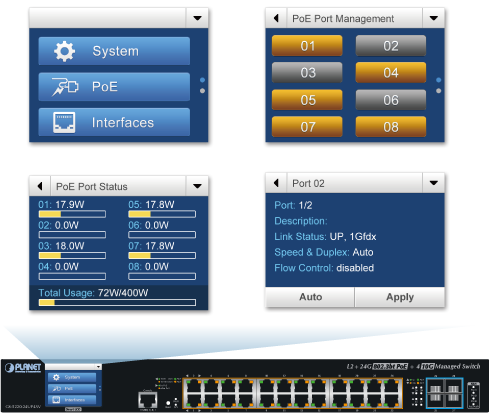

Smart and Intuitive LCD Control

PLANET unique Smart LCD PoE Switches provide an intuitive touch panel on their front panels that facilitate the Ethernet PoE PD management that greatly promotes management efficiency in large-scale network, such as enterprises, hotels, shopping malls, government buildings, and other public areas. They also feature the following special management and status functions:

  • IP address, VLAN and QoS configuration
  • PoE management and status
  • Port management and status, and SFP information
  • Troubleshooting: cable diagnostic and remote IP ping
  • Maintenance: reboot, factory default and save configuration

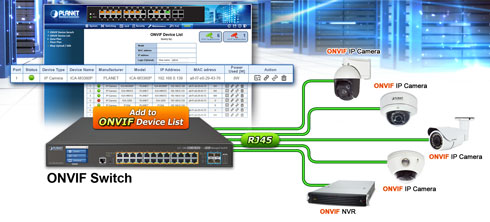

Convenient and Smart ONVIF Devices with Detection Feature

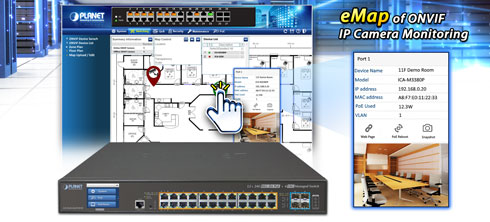

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From the GS-5220-24P4XV and GS-5220-24P4XVR GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images into switch and they allow for deploying location of surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and they also allow PoE reboot control from GUI.



Built-in Unique PoE Functions for Powered Devices Management

Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-5220-24P4XV and GS-5220-24P4XVR feature the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring

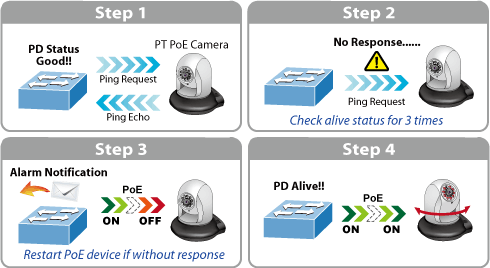

Intelligent Powered Device Alive Check

The GS-5220-24P4XV and GS-5220-24P4XVR can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-5220-24P4XV and GS-5220-24P4XVR will resume the PoE port power and bring the PD back to work. They will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

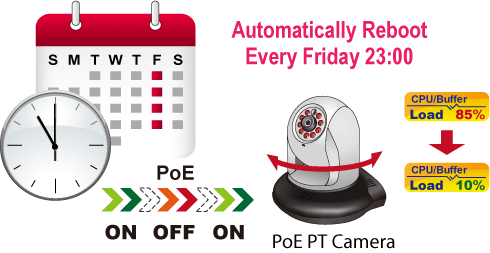

Scheduled Power Recycling

The GS-5220-24P4XV and GS-5220-24P4XVR allow each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.

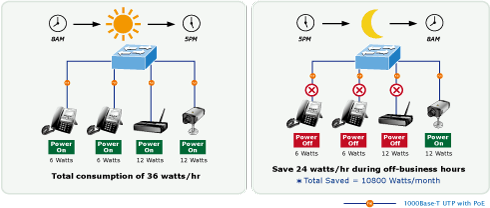

PoE Schedule for Energy Saving

Under the trend of energy saving worldwide and contributing to environmental protection, the GS-5220-24P4XV and GS-5220-24P4XVR can effectively control the power supply besides their capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.



PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-5220-24P4XV and GS-5220-24P4XVR enable the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, they greatly enhance the management efficiency of the facilities.

Cost-effective 10Gbps Uplink Capacity

10G Ethernet is a big leap in the evolution of Ethernet. The four 10G SFP+ slots of the GS-5220-24P4XV and GS-5220-24P4XVR support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. They greatly support SMB network to achieve the maximum performance of 10Gbps in a cost-effective way because the 10GbE interface usually could be available in Layer 3 Switch but Layer 3 Switch could be too expensive to SMBs.

Redundant AC/DC Power Supply to Ensure Continuous Operation

The GS-5220-24P4XVR is particularly equipped with one 100~240V AC power supply unit and one 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-24P4XVR is able to act as a telecom-level device that can be located in the electronic room.

Environment-friendly, Smart Fan Design for Silent Operation

The GS-5220-24P4XV and GS-5220-24P4XVR feature a 19-inch metal housing, a low noise design and an effective ventilation system. They support the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-5220-24P4XV and GS-5220-24P4XVR are able to operate reliably, stably and quietly in any environment without affecting their performance.

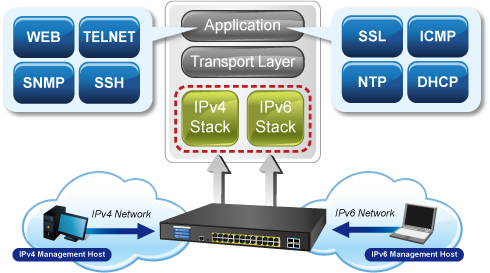

Solution for IPv6 Networking

Check out all the Specifications and Features in the Datasheet

POE Active (48V)
30W (802.3at)
SFP
Yes, SFP+ (10Gb)
Redundant Power Supply
Yes
Ethernet Ports
24
Managed
Yes
