Planet GS-4210-24T2S 24-Port Layer 2 Managed Gigabit Ethernet Switch W/2 SFP Interfaces

GS-4210-24T2S
Last items in stock
$352.00
Tax included

GS-4210-24T2S



Cost-optimized Managed Switch with Advanced L2/L4 Switching and security

PLANET GS-4210-24T2S is an ideal Gigabit Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. Besides the popular IPv6/IPv4 management and abundant L2/L4 switching functions, the GS-4210-24T2S comes with fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment.

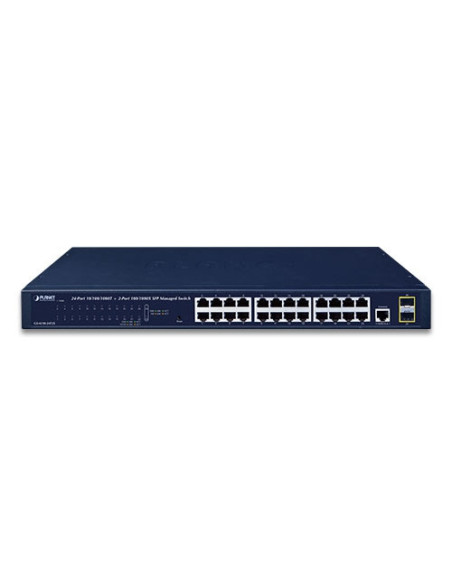

The GS-4210-24T2S is equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 2 additional 100/1000BASE-X SFP interfaces with inner power system. It offers a rack-mountable, affordable, safe and reliable Gigabit network switch solution for SMBs deploying networks, or requiring enhanced data security and network traffic management.



GS-4210-24T2S 24-Port Layer 2 Managed Gigabit Ethernet Switch W/2 SFP Interfaces

Cybersecurity Network Solution to Minimize Security Risks

The GS-4210-24T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-24T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-24T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Robust Layer 2 Features

The GS-4210-24T2S  can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-24T2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.



Efficient Traffic Control

The GS-4210-24T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security

PLANET GS-4210-24T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows limiting the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Friendly and Secure Management

For efficient management, the GS-4210-24T2S is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the GS-4210-24T2S offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.

Moreover, the GS-4210-24T2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMPv3 connections which encrypt the packet content at each session.



Flexible Extension Solution

The two mini-GBIC slots built in the GS-4210-24T2S are compatible with the 100BASE-FX/1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitor center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

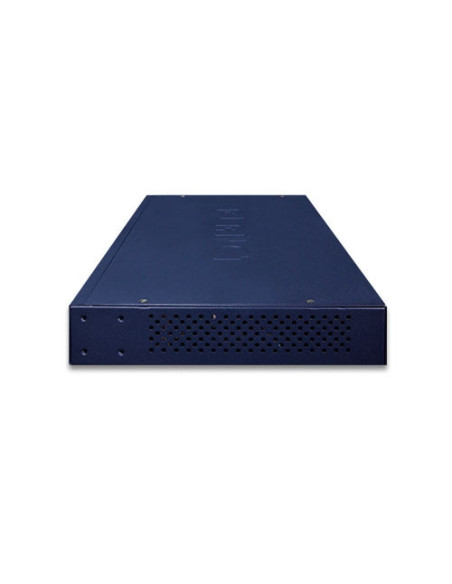

Fanless Design

Adopting the latest chip process and green technology, the GS-4210-24T2S successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the GS-4210-24T2S is able to operate stably and quietly in any environment without affecting its performance.

Hardware Specifications

Hardware Version 2
Copper Ports 24 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 445 x 207 x 45 mm (1U height)
Weight 2.1kg
ESD Protection Yes
Enclosure Metal
Power Requirements 100~240V AC, 50/60Hz, 0.8A (max.)
Power Consumption/Dissipation Max. 14 watts/47 BTU
LED System:
Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
100/1000Mbps SFP Interfaces (Port 25 to Port 26):
1000 LNK/ACT (Green), 100 LNK/ACT (Orange)

Switching

Switch Architecture Store-and-Forward
Switch Fabric 52Gbps/non-blocking
Switch Throughput@64 bytes 38.6Mpps @64 bytes
MAC Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 9216 bytes

Layer 2 Functions

Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 8 groups of 8-port trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD (v1/v2) snooping, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
QoS 8 mapping IDs to 8 level priority queues
 Port number
 802.1p priority
 DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
Ring Supports ERPS, and complies with ITU-T G.8032

Security Functions

Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
Port Security IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC Security IP-MAC port binding
MAC filter
Static MAC address
Enhanced Security DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

Management Functions

Basic Management Interfaces RS232 to RJ45 Console
Web browser
Telnet
SNMP v1, v2c
Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB

Standards Conformance

Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring

Environment

Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Device Type
Network Switch
Device Features
TAA Compliant
SFP Ports
2 Ports
Power Input
AC
SFP
Yes, 1G SFP
Ports
24 10/100/1000T + 2 1000X SFP
Type
Managed
Power Consumption
Max. 14W/47BTU
Operating Temperature
0 to 50°C
Throughput
35.6Mpps @ 64Bytes
Supports
Cloudviewer App (more info. below)
Switch Fabric
52Gbps/non-blocking
4711605280785
GS-4210-24T2S
