mPort IP Gateway Device for mFi Networks

mPort IP Gateway Device for mFi Networks

mPort
Available
A$128.76
Tax included

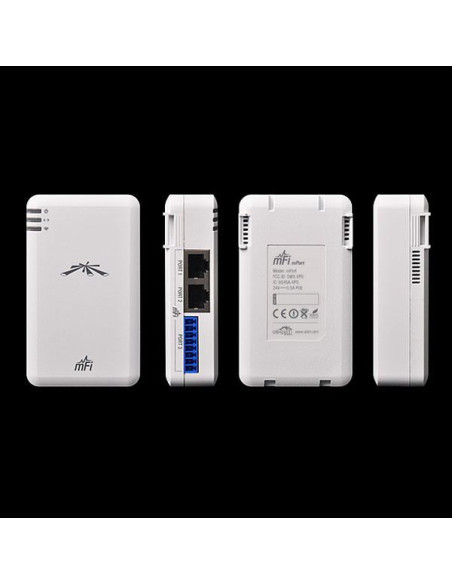

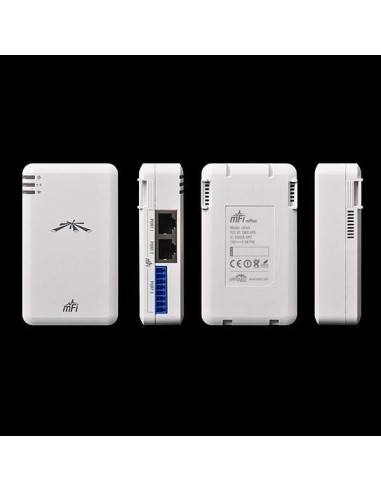

mFi mPort IP Gateway Device for mFi Networks

MPort supports up to 3 sensors that can be easily attached through standard Cat5 Ethernet cable. The mPort features built-in WiFi and Ethernet to attach the sensors to the IP network. Once connected, the mFi controller software enables complete control over all connected sensors.

mFi mPort IP Gateway Device for mFi Networks

MPort supports up to 3 sensors that can be easily attached through standard Cat5 Ethernet cable. The mPort features built-in WiFi and Ethernet to attach the sensors to the IP network. Once connected, the mFi controller software enables complete control over all connected sensors.

Features of mPort:
  • Dimensions: 100 x 60 x 36.5mm (with bracket)
  • Power Supply: 24V, 0.5A Surge Protection Integrated PoE Adapter (included)
  • Max. Power Consumption: 3W
  • Networking Interface: (1) 10/100 Ethernet Port
  • Ports: (2) mFi RJ45 Ports, (1) mFi Terminal Block Port
  • WiFi Standards: 802.11b/g/n
  • Memory: 16MB RAM, 8MB Flash
  • LEDs: 3 LEDs (Power, Ethernet, Status)
  • Mounting: Wall-Mount Bracket (included)
  • Operating Temperature: -10 to 70° C
  • Operating Humidity: 5 to 80° Condensing

mPort Connection diagram

Quick start guide
Datasheet
