mFi Wall Mount Motion Sensor

mFi Wall Mount Motion Sensor

mfi-motion
Available
A$53.56
Tax included

mFi Wall Mount Motion Sensor

Ubiquiti offers a variety of sensors to connect to the mPort and your mFi network. These sensors connect to the mPort using a standard RJ45 cable, except for the mFi-DS, which connects using a terminal block connector.

mFi Wall Mount Motion Sensor

Ubiquiti offers a variety of sensors to connect to the mPort and your mFi network. These sensors connect to the mPort using a standard RJ45 cable, except for the mFi-DS, which connects using a terminal block connector.

  • mFi-MSW - Wall Mount Motion Sensor
  • mFi-MSC - Ceiling Mount Motion Sensor
  • mFi-THS - Temperature Sensor
  • mFi-CS - Current Sensor
  • mFi-DS - Door Sensor



mFi Wall Mount Motion Sensor

Wall Mount Motion Sensor (mFi-MSW) is a dual-technology motion sensor, using both passive infrared and microwave motion sensors to minimise the likelihood of false detections.It is wall-mountable and designed for security, occupancy detection, resource scheduling, and other smart building applications.

The mFi Wall Mount Motion Sensor is designed for use with the mFi mPort. Once they are connected, you can use the mFi Controller software (included with the mFi mPort) to monitor your machines using your Web browser.

mFi Wall Mount Motion Sensor diagram on mFi Controller software

Specifications:

Dimensions: 146 x 66 x 52mm
Weight: 127g
RFI Immunity: Ave. 10 V/m (80 to 2,000 MHz)
Detection Range: 10 x 10m, 110° @25° C
Ports: (1) mFi RJ45 Port
Mounting: Wall/Ceiling-Mount Bracket (kits included)
Mounting Height: 2.3m typical
Operating Temperature: -10 to 45° C
Operating Humidity: 95° RH Max.

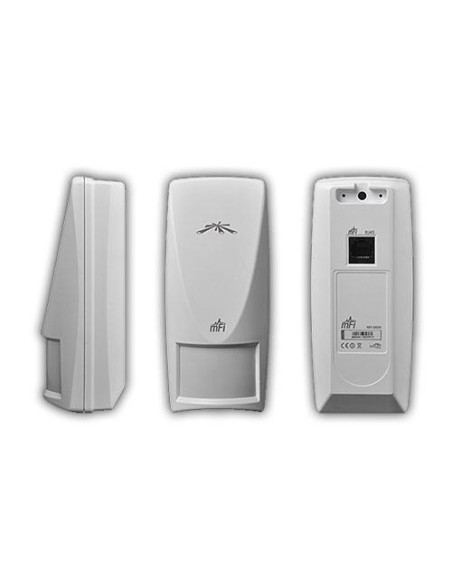

mFi Wall Mount Motion Sensor side views

mFi Wall Mount Motion Sensor back view

Quick start guide
Datasheet
