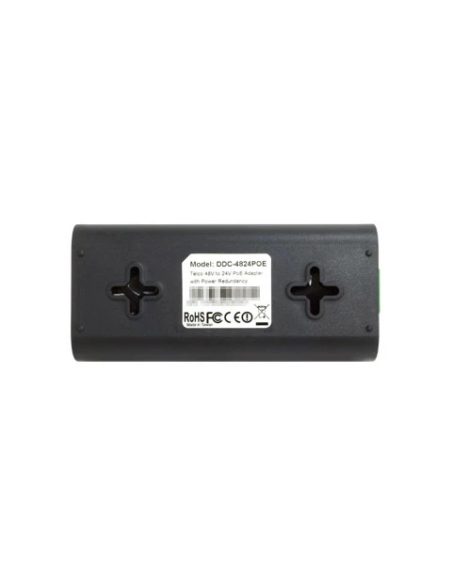

DDC-4824POE 48VDC to 24VDC POE adaptor DUAL INPUT
DDC-4824POE is the +/- 48VDC to 24VDC Dual-Input ( DC / Terminal block) Gigabit PoE adapter, which design for telecom -48VDC environment to support passive 24V PoE outdoor AP/CPE device such as Ubiquiti, Mikrotik and other passive 24V PoE device. With Redundant Dual-Input, it make your life easy and you don’t need to worry if power drops.
DDC-4824POE 48VDC to 24VDC POE adaptor DUAL INPUT
DDC-4824POE is the +/- 48VDC to 24VDC Dual-Input ( DC / Terminal block) Gigabit PoE adapter, which design for telecom -48VDC environment to support passive 24V PoE outdoor AP/CPE device such as Ubiquiti, Mikrotik and other passive 24V PoE device. With Redundant Dual-Input, it make your life easy and you don’t need to worry if power drops.
Input Voltage
|
-48VDC / +48VDC
|
Input Voltage Tolerance Range
|
+/- 36VDC ~ +/- 58VDC
|
PoE Output
|
24VDC +/-10%
|
Output Current
|
0.7A (max.)
|
PoE Pin Define
|
4/5 Pin (+)
7/8 Pin (-)
|
RJ45 Data Speed
|
10/100/1000Mbps ( Gigabit)
|
LED
|
Input LED
Output LED
|
Interface
|
1x Data Input RJ45
1x Data+Power Output RJ45
1x Power Input: DC Jack ( 2.1/5.5)
1x Power Input: Terminal Block Connector
|
Operation Temperature
|
-10 ~ 50°C
|
Storage Temperature
|
-20°C ~ 60°C
|
Dimension
|
102.5(L)x47.5(W) x 27(H) mm |
- POE Ports
- 1
