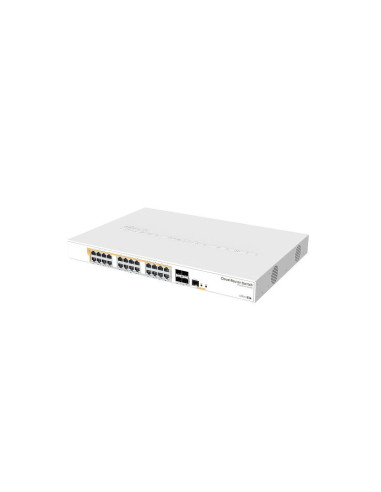

MikroTik CRS328-24P-4S+RM - w/ 28 independent ports 24 Gigabit Ethernet ports Passive PoE, low voltage PoE, 802.3af/a

CRS328-24P-4S+RM
CURRENTLY OUT OF STOCK. CONTACT US FOR AVAILABILITY
A$599.50
Tax included

CRS328-24P-4S+RM 28 independent port switch 24 Gigabit Ethernet port Passive PoE, low voltage PoE, 802.3af/a

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).



Ethernet patch cable
Woobm USB

Quantity Price You Save
4 A$557.54 Up to A$167.86
9 A$545.55 Up to A$485.60
16 A$509.58 Up to A$1,438.80
20 A$503.58 Up to A$1,918.40

Description

CRS328-24P-4S+RM 28 independent port switch 24 Gigabit Ethernet port Passive PoE, low voltage PoE, 802.3af/a

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

Switching Features

  • Non-blocking Layer 2 switching capacity
  • 16K host table
  • IEEE 802.1Q VLAN
  • Supports up to 4K simultaneous VLANs
  • Port isolation
  • Port security
  • Boardcast storm control
  • Port Mirroring of ingress/egress traffic
  • STP/RSTP/MSTP
  • Access Control List
  • MikroTik neighbor discovery
  • SNMP
  • 10218-byte jumbo frames support
  • IGMP snooping
  • IEEE 802.3ad and static link aggregation

Specifications

  • Product code CRS328-24P-4S+RM
  • CPU Dual-Core ARM v7 800 MHz
  • RAM 512 MB
  • Storage type Flash
  • Storage size 16 MB
  • Switch chip model 98DX3236A1
  • 10/100/1000 Ethernet ports 24
  • SFP+ cages 4
  • Operating system SwOS / RouterOS (Dual boot)
  • Supported input voltage 100 - 240 V
  • Dimensions 443 x 305 x 44 mm
  • Operating temperature -20°C .. +60°C tested
  • Max power consumption 44 W
  • Serial port RJ45
  • License level 5

Product Details

Rack Mountable
Yes
POE Active (48V)
15W (802.3af), 30W (802.3at)
SFP
Yes, SFP+ (10Gb)
Ethernet Ports
24
POE Passive (24V)
Yes
