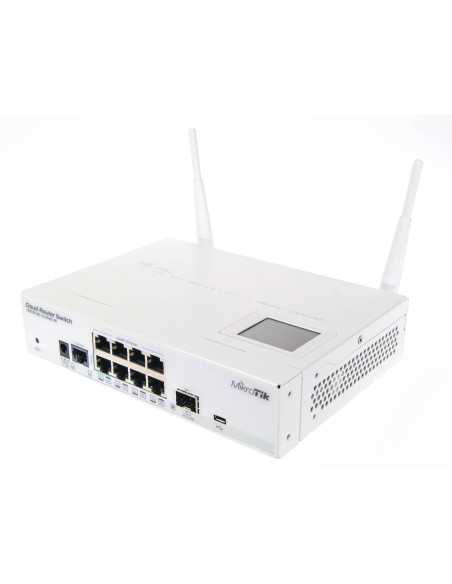

CRS109-8G-1S-2HnD-IN complete 1 SFP port plus 8 port 10/100/1000 layer 3 switch and router with onboard radio assembled with cas

CRS109-8G-1S-2HnD-IN 8-Port SFP Cloud Router Switch

CRS109-8G-1S-2HnD-IN
Last items in stock
A$331.00
Tax included

CRS109-8G-1S-2HnD-IN complete 1 SFP port plus 8 port 10/100/1000 layer 3 switch and router with onboard radio assembled with case and power supply

CRS109-8G-1S-2HnD-IN has 802.3af/at PoE (input) support!

Cloud Router Switch is Mikrotik's new Smart Switch series. It is a fully functional Layer 3 switch, and is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration and used for routing purposes.



Ethernet patch cable
Woobm USB

Quantity Price You Save
4 A$331.00 Up to A$72.82
9 A$331.00 Up to A$312.80
16 A$331.00 Up to A$714.96
20 A$331.00 Up to A$993.00

CRS109-8G-1S-2HnD-IN complete 1 SFP port plus 8 port 10/100/1000 layer 3 switch and router with onboard radio assembled with case and power supply

CRS109-8G-1S-2HnD-IN has 802.3af/at PoE (input) support!

Cloud Router Switch is Mikrotik's new Smart Switch series. It is a fully functional Layer 3 switch, and is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration and used for routing purposes.

What’s more - this device has a built in 2.4GHz wireless access point. This means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 8 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

Mikrotik's CRS109-8G-1S-2HnD-IN supports any 1.25G SFP transceiver that is within the SFF Committee specifications for SFP Transceivers. CRS109-8G-1S doesn’t have hardware support for PON (Passive Optical Network) - this hardware support MUST be implemented on SFP transceiver itself. Note that the SFP transceiver is NOT included.

All ethernet ports are fully independent and support 802.1q vlans, and advanced Layer 3 routing protocols including RIPv2, OSPF. and BGP4. Management from GUI or CLI with access through web, telnet, or ssh.

Putting it all in one reasonably small package Mikrotik has made very ince looking device with many options at very reasonable price.
This will be perfect replacement of any home/soho ADSL routers.

Specifications of CRS109-8G-1S-2HnD-IN:
  • Product code:  CRS109-8G-1S-2HnD-IN
  • CPU nominal frequency:  600 MHz
  • SFP DDMI:  Yes
  • CPU core count:  1
  • Size of RAM:  128 MB
  • Wireless Chip:  AR9344-DC3A-R
  • Wireless standards:  802.11b/g/n (2Ghz)
  • 10/100 Ethernet ports;  0
  • 10/100/1000 Ethernet ports:  8
  • Serial Port:  1x RJ45
  • MiniPCI slots:  0
  • MiniPCI-e slots;  0
  • Number of USB ports:  1 (microUSB type AB)
  • Power Jack:  1 (8 V - 57 V)
  • Voltage Monitor:  Yes
  • CPU temperature monitor:  No
  • PCB temperature monitor:  Yes
  • Dimensions:  285x145x45mm
  • Operating System:  RouterOS
  • Operating temperature range
  • License level:  L5
  • PoE-Out:   No
  • PoE-in:  Yes (802.3af/at)
  • SFP ports:  1
  • SFP+ ports:  0
USB port
Yes
WiFi
Yes
Wireless System
2.4GHz
SFP
Yes, SFP (1Gb)
Ethernet Ports
8
POE Passive (24V)
Yes
