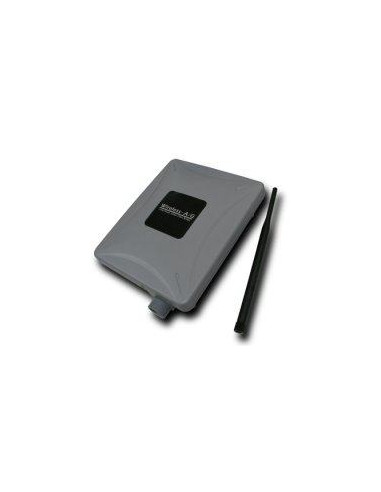

CPE-5-20 Deliberant 5GHz 20dBi CPE

Deliberant CPE-5

The CPE 5-20 product marks the launch of the 5 GHz, integrated antenna units on the Deliberant product line. This high pow-ered, carrier-grade product operates on a Linux-based core operating system—providing an increased amount of flexibil-ity, stability, features, and management functions that are not present in other WISP products on the market today. The CPE 5-20 product is field proven and deliv-ers superior 5 GHz performance designed to serve the needs of WISPs both large and small. The CPE 5-20 is also compatible with RCMS, a centralized configuration, firmware, and statistics server for carrier class management.
The hardware features of the CPE 5-20 include a powerful 24dBm RF engine with an integrated 20dBi wide-band panel antenna. The combi-nation of high output power, high antenna gain, and narrow beamwidth make this product perfect for 5 GHz client operation. The radio is also encased in a sleek, durable outdoor enclosure built to withstand ex-treme operating environments and the harshest of conditions for use in any WISP network.

Key Features

•  Adjustable RF Output power
• High gain 20dBi integrated panel antenna
• Full, half, and quarter bandwidth channels
• PoE built-in for single cable installation
• Configurable Multi-mode CPE
• Client/Client Router
• WDS
• Latest security technologies
• Comprehensive software features
• IP routing
• DHCP client/server/relay
• DNS relay/proxy
• Stateful inspection firewall
• MAC/IP filteringDigital device certificates
• Multicast video support for CCTV or IPTV (IGMPv3)
• Comprehensive management features
• Web GUI
• Command line management via SSH
• RCMS server support for configuration
• SNMP V1/2 with traps supporting MIBs: 802.1, 802.1x, MIBII
• Syslog support

WLAN Standard:
802.11a
Radio Scheme:
802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK)
Frequency Range:
4.9 GHz ~ 5.85 GHz (Country dependent)
RF Output Power:
Up to 24 dBm - Adjustable
Receiver Sensitivity:
-93 +/- 2dBm @ 6Mbps, -74 +/- 2dBm @54 Mbps
Data Rate:
802.11a: 54 / 48 / 36 / 24 / 12 / 9 / 6 Mbps
Power Supply:
On-board Ethernet surge protection
Input power accepts 9V—24V power-over- ethernet, perfect for solar installations
18V / 1.1 A Power-over-Ethernet Power supply included
Operating Mode:
Client/Client Router
WDS

Antenna:
20dBi wide-band antenna (4.9GHz~5.85GHz)
3dB Beamwidth (Vertical/Horizontal)
15 deg / 13 deg
Security:
Password Protection
WPA/WPA2 Personal/Enterprise
MAC Filtering
Hidden SSID support
802.11i
802.1x
Static and dynamic WEP
Enclosure:
Weatherproof Enclosure
(30 cm. x 30 cm. x 8.5 cm.)
meets IP67 standards
Operating Environment
Temperature –30C ~ 60C
Humidity 10 ~ 90% (non-condensing)
Warranty:
1-Year
Certification:
FCC/CE
