ARC-PD5823B88 ARC Wireless 5GHz 23dBi DP Panel
ARC-PD5823B88 ARC Wireless 5GHz 23dBi DP Panel

ARC-PD5823B88 ARC Wireless 5GHz 23dBi DP Panel

ARC-PD5823B88
Out Of Stock
$258.56
Tax included

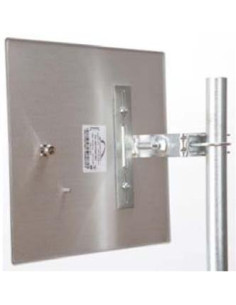

ARC-PD5823B88 ARC Dual Pol Panel Antenna 5.8GHz, 23dBi

Flat panel 20dbi dual pol with N female connectors and includes mounting bracket.

5.15-5.875GHz 20dBi Dual Polarization Panel Antenna provides maximum gain in lowest size available. Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications. High Port to Port Isolation for Ideal MIMO Performance Dual Polarization (H & V). Manufactured under strict US quality control procedures



ARC-PD5823B88 ARC Dual Pol Panel Antenna 5.8GHz, 23dBi

Flat panel 20dbi dual pol with N female connectors and mounting bracket.

5.15-5.875GHz 20dBi Dual Polarization Panel Antenna provides maximum gain in lowest size available. Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications. High Port to Port Isolation for Ideal MIMO Performance Dual Polarization (H & V). Manufactured under strict US quality control procedures

Arc Wireless ARC-PD5823B88 ARC IES Dual Pol Antenna 4.94-5.875 GHz 23.5dBi

  • Maximum gain in lowest size available
  • Robust Design meets ETSI EN300, EN302, 2003/108/EC and 2002/95/EC specifications
  • High Port to Port Isolation for Ideal MIMO Performance
  • Dual Polarization (H & V)
  • Manufactured under strict US quality control procedures

Features of ARC-PD5823B88:

  • Frequency Range  4.94-5.875 GHz
  • Gain  19.5dBi (typical)
  • Polarization  Dual Linear – Vertical and Horizontal
  • 3dB Beamwidth Vertical/ Horizontal  17 degrees/ 17 degrees
  • VSWR 4.94-4.99GHz 5.15-5.875GHz ≤1.5:1 typ, ≤2.0:1 max ≤1.5:1 typ, ≤1.7:1 max
  • Port to Port Isolation ≤25 dB
  • Front-to-Back Ratio ≤35 dB
  • Cross Polarization ≤30 dBi
  • Power Rating 30 watts
  • Impedance  50 ohms
  • Lightning Protection  DC Ground
  • Connector Type:  N female (x2)

Datasheet of the ARC-PD5823B88 antenna

Antenna Gain (dBi)
23
Antenna
Dual Polarity
Panel
MIMO
2x2
Wireless System
5GHz
7427005937439
ARC-PD5823B88
