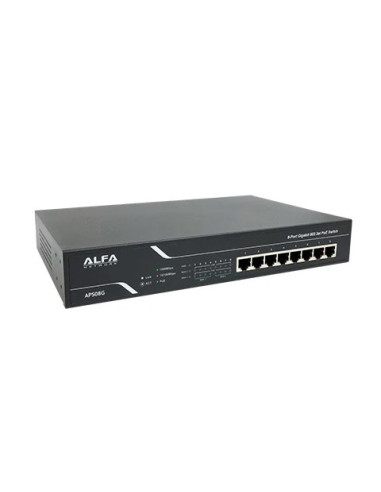

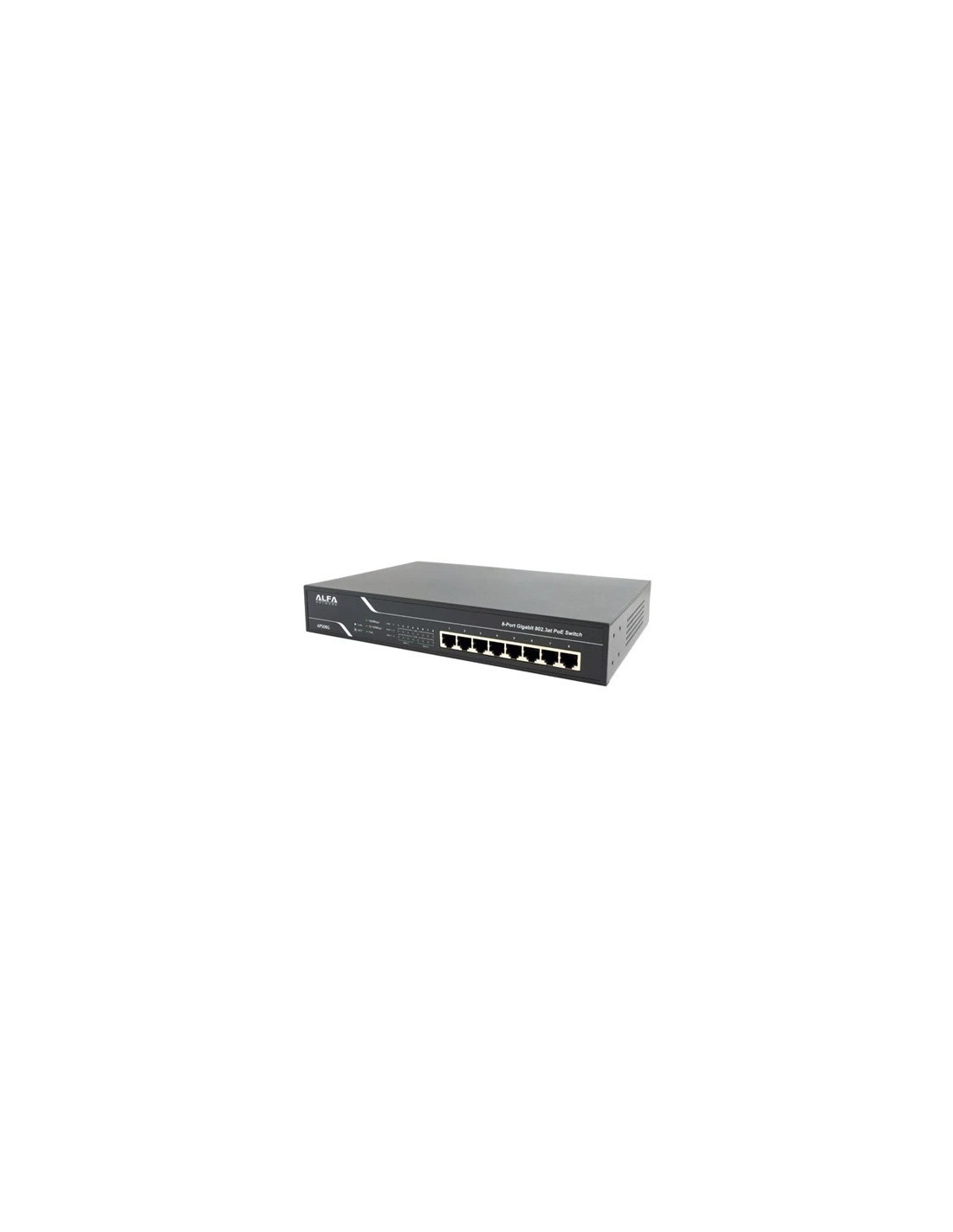

Alfa 8-Port 30W 802.3at PoE Gigabit Ethernet Switch
8 port gigabit POE switch, 30W per port
APS08G 8-port 10/100/1000M 802.3at PoE witch meets the demand of high power PoE network appliances seamlessly with fast Ethernet connection. Up to 150W power-output, APS08G feeds Max. 30W per port to PoE-enabled devices via standard Cat.5e/6 cable. With power and data over Ethernet from one device, APS08G not only simplifies cabling tasks, but also extends remote power supply to PoEPD devices (IP camera, wireless AP, or IP phones) at max. 100-meter distance.
8 port gigabit POE switch, 30W per port
APS08G 8-port 10/100/1000M 802.3at PoE witch meets the demand of high power PoE network appliances seamlessly with fast Ethernet connection. Up to 150W power-output, APS08G feeds Max. 30W per port to PoE-enabled devices via standard Cat.5e/6 cable. With power and data over Ethernet from one device, APS08G not only simplifies cabling tasks, but also extends remote power supply to PoEPD devices (IP camera, wireless AP, or IP phones) at max. 100-meter distance.
APS08G is environmental-friendly, supporting latest energy-saving technology, Energy-Efficient Ethernet mode (EEE; defined in IEEE 802.3az) to reduce networking system power consumption. NO configuration needed, APS08G negotiates and determines the required power output for connected cable length/device. It is made of metal case and has power supply buil-in
Features of APS08G:- 8 ×10/100/1000Mbps auto-negotiation RJ-45 ports with 8-Port 802.3at PoE
- Max. 30W per port for 802.3at PD device
- Max. power budget 150W with PoEusage LED
- IEEE 802.3x flow control & backpressure support
- Store and forward, non-blocking wire-speed reception and transmission
- 8 x 10/100/1000Mbps auto-negotiation RJ-45 ports supporting auto-MDI/MDI-X
- 8K MAC address auto-learning and auto-aging
- Innovative energy-efficient technology, IEEE802.3az reduces power consumption any time
- LED indicators for monitoring power, PoE, link, activity
- Device Type
- Network Switch
Power Over Ethernet - Device Features
- Rackmount
Unmanaged - POE Ports
- 8
- Power Input
- AC
- Power Over Ethernet
- 48V 15W 802.3af
48V 30W 802.3at - Ethernet Ports
- 8 Eth ports
