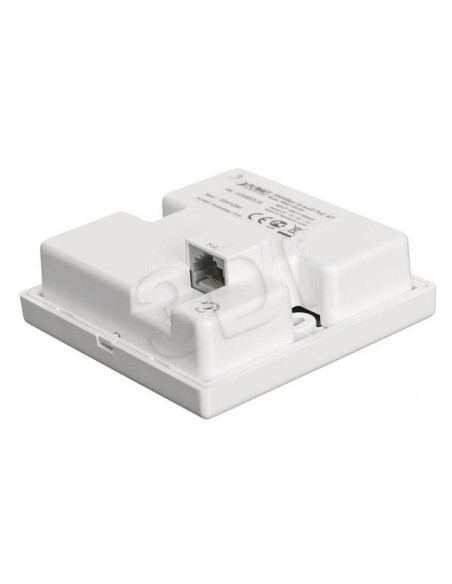

WNAP-W2200 PLANET 2.4GHz In-Wall Access Point
WNAP-W2200 PLANET 2.4GHz In-Wall Access Point
    WNAP-W2200 PLANET 2.4GHz In-Wall Access Point
    WNAP-W2200 PLANET 2.4GHz In-Wall Access Point

    WNAP-W2200 PLANET 2.4GHz In-Wall Access Point

    Tax included

    WNAP-W2200 300Mbps 802.11n Wireless In-wall PoE Access Point


    WNAP-W2200 300Mbps 802.11n Wireless In-wall PoE Access Point

    Wall Outlet to Wireless Solution
    The WNAP-W2200 is a stylish in-wall Wi-Fi access point, which is specially designed for existing building structure, without affecting the appearance of the interior design. The design can provide users with convenient wireless local area network (WLAN). The WNAP-W2200 is designed with standard 86 x 86 mm European Outlet Box size and can be installed in the existing building structure to easily construct a wireless network. Thus, it helps system integrator save time, cost and human resource.
    Ultra High Speed 802.11n Wireless Type
    The WNAP-W2200 features IEEE 802.11n radio with 2T2R MIMO antenna technology to provide improved wireless speed and coverage with up to 300Mbps upload and download data rate. The incredible wireless speed makes it ideal for stably and smoothly handling multiple HD movies stream, high resolution on-line game, stereo music, VoIP and data streams at the same time. It is also backward compliant with 802.11g and 802.11b standards; thus, it does not need to change the existing network for convenient maintenance. Just connect to the WNAP-W2200 and you can immediately enjoy the high-speed wireless sharing.
    Full Support of Wireless Security Encryption
    In aspect of security, besides 64/128-bit WEP encryption, the WNAP-W2200 integrates with WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x radius authority to secure and protect your wireless LAN. It provides the wireless MAC filtering and SSID broadcast control to consolidate the wireless network security and prevent unauthorized wireless connection.

    Attr1 In-wall Design
    Featuring attr1 in-wall design, the WNAP-W2200 can be firmly installed into the wall via the standard 86 x 86 mm European outlet box, which is easy and convenient for room installation. Its simple body without protruding antennas also gives no effects to the surroundings.
    Convenient USB Charger
    To provide better services for travelers, the WNAP-W2200 comes with a built-in USB 2.0 charger whose output of 5V DC power can charge any USB compliant mobile devices, e.g. cell phones, ipads, and other handheld devices. Thus, this option gives convenience to pedestrians and travelers. They need not worry about forgetting to carry an AC adapter.
    Flexible Deployment with PoE Feature
    Compliant with IEEE 802.3af Power over Ethernet standard, the WNAP-W2200 can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. The wireless AP deployment becomes more flexible and worry-free from the power outlet locations.

    Easy Installation & Management
    With user-friendly Web UI and Central Management Utility, it is easy for users to install the WNAP-W2200, even for a user who never experiences setting up a wireless network. In addition, its SNMP feature allows the system administrator to remotely monitor and control the network devices more efficiently.

    Standard Compliant Hardware Interface

    • Complies with IEEE 802.11n wireless LAN speed up to 300Mbps
    • 2 x 10/100Base-TX Port with 1-port PoE PD (powered device)
    • 2T2R MIMO technology for enhanced throughput and coverage
    • USB 2.0 charger port for easy charging to most of mobile devices
    • European 86 type wall outlet compatibility

    Secure Network Connection

    • Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and radius authentication
    • Supports MAC address filtering

    Easy Installation & Management

    • Easy deployment with standard IEEE 802.3af PoE support
    • User-friendly web-based UI
    • Centralized Management Utility allows administrator to monitor and configure
    Hardware Specifications
    InterfacePoE Port:
    1 x 10/100Mbps auto MDI/MDI-X RJ45 port (rear panel),
    IEEE 802.3af PoE PD port
    LAN Port:
    1 x 10/100Mbps auto MDI/MDI-X RJ45 port (front panel)
    USB Port:
    USB 2.0, Type-A, 5V DC/0.5A output
    PoE StandardIEEE 802.3af
    AntennaBuilt-in 3dBi antenna x 2
    Reset ButtonReset button on front panel
    LED IndicatorsPWR/SYS LED
    Dimensions (W x D x H)86 x 86 x 36 mm
    Power Requirements48V DC, 320mA
    Power Consumption< 10W
    Wireless interface Specification
    StandardCompliant with IEEE 802.11b/g/n
    Frequency BandEurope / ETSI: 2.412~2.472GHz (13 Channels)
    Channel Width20 or 20/40MHz
    Transmission DistanceIndoor up to 100m
    Outdoor up to 300m (It is limited to the environment.)
    RF Power (Intentional Radiator)IEEE 802.11b: 18dBm
    IEEE 802.11g: 15dBm
    IEEE 802.11n: 15dBm


    Wireless System
    POE Active (48V)
    15W (802.3af)
