Planet L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ with 4 Shared SFP Managed Switch

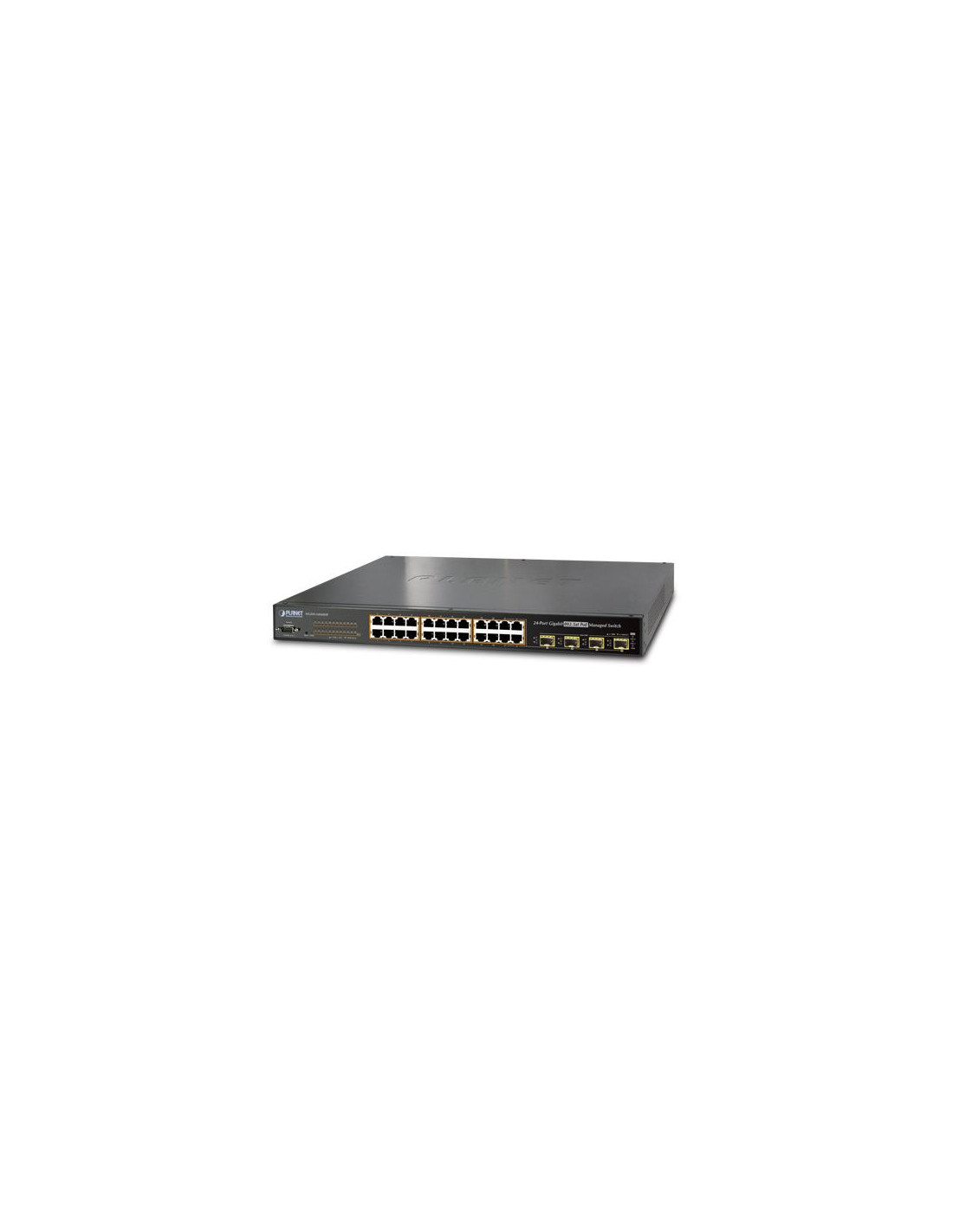

WGSW-24040HP4 24-Port 10/100/1000Mbps 802.3at PoE+ with 4 Shared SFP Managed Switch

The WGSW-24040HP4 series is the latest generation of PLANET Managed Gigabit PoE Switches featuring PLANET intelligent PoE functions to improve the availability of critical business applications. The series provides IPv6/IPv4 management and built-in L2/L4 Gigabit Switching engine along with 24 10/100/1000Base-T ports featuring 30-watt 802.3at PoE+ and 4 Gigabit SFP slots. With total power budget up to 220W and 440W for different kinds of PoE applications, the series provides quick, safe and cost-effective Power over Ethernet network solutions to security IP surveillance for small business and enterprises.

Centralized Power Management for Gigabit Ethernet PoE Networking

To fulfill the needs of higher power required PoE network applications with gigabit speed transmission, the WGSW-24040HP series features IEEE 802.3at power over Ethernet plus(PoE+) that combines up to 30 watts of power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to meet the demand of higher power consuming network PD (powered devices) such as IR, PTZ, Speed Dome cameras or even Box type IP cameras with built in fan and heater. Compliant with both 802.3at and 802.3af, the series allows more flexibility in power requirement for a variety of PDs.

Physical Port

• 24-Port 10/100/1000Base-T RJ-45 copper with IEEE 802.3at/802.3af Power over Ethernet Injector function
• 4 100/1000Base-SX/LX DDM SFP shared combo interfaces
• RS-232 DB9 console interface

Power over Ethernet

• Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
• Complies with IEEE 802.3af Power over Ethernet End-Span PSE
• Up to 24 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Auto detect powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• PoE Management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE Port Power feeding priority
  • Per PoE port power limit
  • PD classification detection
  • PD Alive-check
  • PoE schedule
  • PD power recycling schedule

Layer2 Features

• Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
  • Broadcast/Multicast/Unknown unicast
• Supports VLAN
  • IEEE 802.1Q Tagged VLAN
  • Up to 255 VLANs groups, out of 4094 VLAN IDs
  • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
• Supports Spanning Tree Protocol
  • STP, IEEE 802.1D Spanning Tree Protocol
  • RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
  • MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  • BPDU Guard
• Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (Static Trunk)
  • Maximum 10 trunk groups, up to 16 ports per trunk group
  • Up to 32Gbps bandwidth (Full Duplex Mode)
• Provides Port Mirror (many-to-1)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
  • IEEE 802.1p CoS
  • TOS / DSCP / IP Precedence of IPv4/IPv6 packets
  • IP TCP/UDP port number
  • Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing policies on the switch port
• DSCP remarking

Multicast

• Supports IGMP Snooping v1, v2 and v3
• Supports MLD Snooping v1 and v2
• Querier mode support
• IGMP Snooping port filtering
• MLD Snooping port filtering
• Multicast VLAN Registration (MVR) support

Security

• IEEE 802.1x Port-based / MAC-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS / TACACS+ users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Source MAC / IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• Auto DoS rule to defend DoS attack
• IP address access management to prevent unauthorized intruder
• Auto DoS rule to defend DoS attack
• IP address access management to prevent unauthorized intruder

Management

• Switch Management Interface
  • Console / Telnet Command Line Interface
  • Web switch management
  • SNMP v1, v2c, and v3 switch management
  • SSH / SSL secure access
• Four RMON groups (history, statistics, alarms, and events)
• IPv6 IP Address / NTP / DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via HTTP / TFTP
• DHCP Relay
• DHCP Option82
• User Privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) Protocol
• Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
• Reset button for system reboot or reset to factory default
• PLANET Smart Discovery Utility for deploy management
• ICMPv6
