    PRA50021 5GHz Dual Pol Panel - 2x21dBi

    PRA50021
    Last items in stock
    A$165.90
    Tax included

    21dBi MIMO 5ghz panel antenna

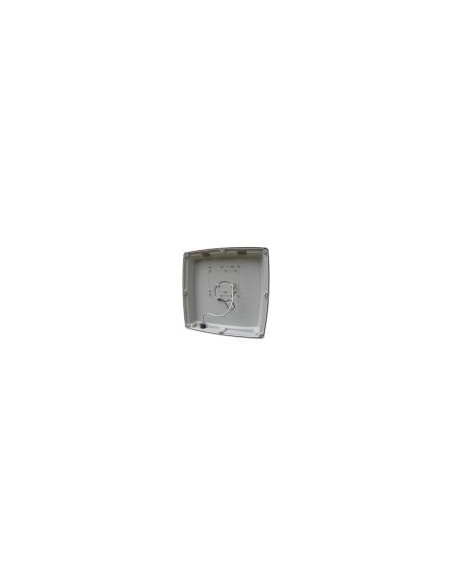

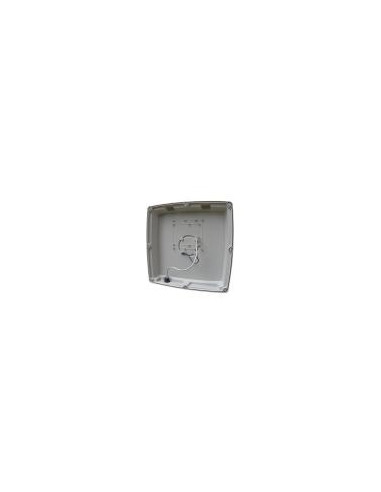

    PRA50021 dual H&V is a compact weatherproof outdoor enclosure (IP66/67) featuring a panel 5GHz antenna with dual polarization (h/v) operating from 5.1GHz to 6.0 GHz with a steady gain of 2x 21dBi across the band.

    21dBi MIMO 5ghz panel antenna



    PRA50021 dual H&V is a compact weatherproof outdoor enclosure (IP66/67) featuring a panel 5GHz antenna with dual polarization (h/v) operating from 5.1GHz to 6.0 GHz with a steady gain of 2x 21dBi across the band.

    An antenna with multipurpose enclosure working in 5 GHz band with two independent directional panel antennas with 21 dBi gain with vertical and horizontal polarization. It is the ideal solution for MIMO and Nstreme dual configuration with MIKROTIK RouterBOARD or ALIX devices. The range includes weatherproof outdoor enclosure with integrated  two panel antennas and enough compartment for RouterBoard or any other electronic equipment. Inside the enclosure there is an attached, special RJ-45 waterproof ethernet connector with easy connection to Internet Network and PoE. Because of reduced sidelobes, antenna keeps clear strong signal even in crowded radio enviroment. It´s resistant to interference from other networks and does not disrupt to other.  High quality construction of pole mounting elements guarantees an easy elevation adjust. This product is well suited to point to point applications for highly proffesional solutions. PRA50021 dual H&V includes suitable posts for RB411,RB711RB433 and RB435G series.

    Technical data of dual pol 21dbi panel antenna PRA50021:
    • 2x21 dBi Panel Antenna
    • Dual Polarization H&V in One
    • Weatherproof Enclosure for Outdoor Use
    • Large Radio Compartment
    • High Quality Construction
    • MIKROTIK FRIENDLY
    • Great Impedance Matching
    • Ultra Low Sidelobes
    • 2 Years Warranty
    • Heavy-Duty Mounting Elements

    Applications:
    • 5 GHz Band Wireless LAN
    • IEEE 802.11a WLAN Systems
    • NStreme Dual configuration
    • Point to Point Applications
    • Integrated Radio/Units

    Electrical Properties:
    • Frequency: 5100 – 6000 MHz
    • Gain: 2x 21 dBi
    • Polarization: Dual Polarization (horizontal and vertical)
    • Beamwidth deg horizontal: 20°
    • Beamwidth deg vertical: 15°
    • VSWR: < 1.7
    • Impedance: 50  Ω
    • Sidelobe suppresion: > 20dB
    • Front to back ratio: > 25 dB
    Mechanical Properties:

    • Technology: Microstrip
    • Antenna Connector: 2xUFl included (MMCX optional)
    • Input Connector: RJ-45 waterproof ethernet
    • Outside Dimensions: 385x385x80 mm
    • Inside Dimensions: 320x320x50 mm
    • Weight: 2.2kg
    • Radome material: UV proteced
    • Color: Gray
    • Construction: All – weather operation
    • Mounting Kit: 50.8 mm

    Antenna Patterns
